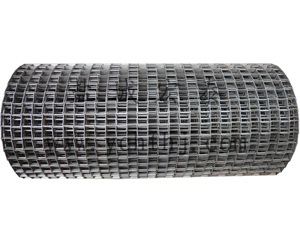

Flat Mesh Belt

Usually these belts are called Chocolate Conveyor belts which are made by assembling the successively bent wires.
Expertise :
1. The sprocket drives ensures positive and stable running.
2. The rotation diameter is small,so that smooth products transfer is ensured.
3. Easy washing is enaured.
4. Because of large open area,high air permeability and capacity are ensured.
Parameters:
|
Material |
Chemical Composition (%) |
MAX WORK TEMP |
|
C |
Si |
Mn |
Ni |
Cr |
Mo |
|
1cr13 |
≤0.15 |
≤0.6 |
≤0.6 |
- |
12-14 |
- |
650 ° |
|
1cr17 |
≤0.15 |
≤0.6 |
≤0.6 |
- |
12-18 |
- |
650 ° |
|
304M |
≤0.06 |
≤1.0 |
≤2.0 |
8.9-10.0 |
18-20 |
- |
920 ° |
|
304L |
≤0.03 |
≤1.0 |
≤2.0 |
9-13 |
18-20 |
- |
- |
|
316 |
≤0.08 |
≤1.0 |
≤2.0 |
10-14 |
16-18 |
2-3 |
- |
|
316L |
≤0.03 |
≤1.0 |
≤2.0 |
12-15 |
16-18 |
2-3 |
- |
|
309S |
≤0.08 |
≤1.0 |
≤2.0 |
12-15 |
22-24 |
- |
1000 ° |
|
310S |
≤0.08 |
≤1.5 |
≤2.0 |
19-22 |
24-26 |
- |
1100 ° |
|
314 |
≤0.25 |
≤1.5-3.0 |
≤2.0 |
19-22 |
23-26 |
- |
1200 ° |
|
CI20NI80 |
≤0.15 |
≤0.4-1.3 |
≤0.7 |
75-78 |
20-23 |
- |
1200 ° |
We can customize the special wire mesh belt according to customers’ requirement.
|
