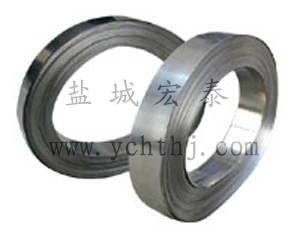

Alloy Strip(Ni-Cr)
|
The company produced high-purity degrees resistance electrothermal alloy products, low impurity resistivity stability (measured coefficient) Sexual good body surface, a total higher heat intensity and good processing performance and may welding of the steel plant varieties specifications complete. Widely used in the metallurgical industry furnace industry, household appliances, machinery and electronics manufacturing industries do heat resistance material.
Design Parameters
|
| ㄗ綠℅遵ㄘㄗmmㄘ |
(mm2) |
0Cr25A15 |
0Cr21A14 |
Cr20Ni80 |
| 1.42㊣0.06米次﹞m |
1.23㊣0.06米次﹞m |
1.091.14㊣0.05米次﹞m |
| 20⊥(次/m) |
(m/kg) |
(kg/m) |
20⊥(次/m) |
(m/kg) |
(kg/m) |
20⊥(次/m) |
(m/kg) |
(kg/m) |
| 0.5℅10 |
4.90 |
0.2900 |
28.74 |
0.03479 |
0.2510 |
27.76 |
0.03602 |
0.222 |
24.30 |
0.04116 |
| 0.8℅10 |
7.84 |
0.1811 |
17.94 |
0.05566 |
0.1569 |
17.35 |
0.05762 |
0.139 |
15.18 |
0.06586 |
| 1.0℅10 |
9.80 |
0.1449 |
14.37 |
0.06958 |
0.1255 |
13.88 |
0.07203 |
0.115 |
12.15 |
0.08232 |
| 1.2℅10 |
11.76 |
0.1207 |
11.98 |
0.08350 |
0.1046 |
11.57 |
0.08644 |
0.0961 |
10.12 |
0.09878 |
| 1.5℅10 |
14.70 |
0.0966 |
9.58 |
0.10437 |
0.0837 |
9.26 |
0.10805 |
0.0769 |
8.10 |
0.1235 |
| 2.0℅10 |
19.60 |
0.0724 |
7.19 |
0.13920 |
0.0628 |
6.94 |
0.14406 |
0.0577 |
6.08 |
0.1646 |
| 0.8℅15 |
11.76 |
0.1207 |
11.98 |
0.08350 |
0.1046 |
11.57 |
0.08644 |
0.0927 |
10.12 |
0.09878 |
| 1.0℅15 |
14.70 |
0.0966 |
9.58 |
0.10437 |
0.0837 |
9.26 |
0.10805 |
0.0769 |
8.10 |
0.1235 |
| 1.2℅15 |
17.64 |
0.0805 |
7.98 |
0.12524 |
0.0697 |
7.71 |
0.1297 |
0.0641 |
6.75 |
0.1482 |
| 1.5℅15 |
22.05 |
0.0644 |
6.39 |
0.15656 |
0.0558 |
6.17 |
0.16207 |
0.0512 |
5.40 |
0.1852 |
| 2.0℅15 |
29.40 |
0.0483 |
4.79 |
0.20874 |
0.0418 |
4.63 |
0.21609 |
0.0384 |
4.05 |
0.2470 |
| 2.5℅15 |
36.75 |
0.0386 |
3.83 |
0.26093 |
0.0335 |
3.70 |
0.27011 |
0.0307 |
3.24 |
0.3087 |
| 0.8℅20 |
15.68 |
0.0906 |
8.98 |
0.11133 |
0.0784 |
8.68 |
0.11525 |
0.0695 |
7.59 |
0.1317 |
| 1.0℅20 |
19.60 |
0.0724 |
7.19 |
0.13916 |
0.0628 |
6.94 |
0.14406 |
0.0577 |
6.07 |
0.1646 |
| 1.2℅20 |
23.52 |
0.0604 |
5.99 |
0.16699 |
0.0523 |
5.78 |
0.17287 |
0.0480 |
5.06 |
0.1976 |
| 1.5℅20 |
29.40 |
0.0483 |
4.79 |
0.20874 |
0.0418 |
4.63 |
0.21609 |
0.0384 |
4.05 |
0.2470 |
| 2.0℅20 |
39.20 |
0.0362 |
3.59 |
0.27832 |
0.0314 |
3.47 |
0.28812 |
0.0288 |
3.04 |
0.3293 |
| 2.5℅20 |
49.00 |
0.0290 |
2.87 |
0.34790 |
0.0251 |
2.78 |
0.36015 |
0.0231 |
2.43 |
0.4116 |
| 3.0℅25 |
58.80 |
0.0241 |
2.40 |
0.41748 |
0.0209 |
2.31 |
0.43218 |
0.0192 |
2.02 |
0.4936 |
| 1.0℅25 |
24.50 |
0.0580 |
5.75 |
0.17395 |
0.0502 |
5.55 |
0.18008 |
0.0461 |
4.86 |
0.2058 |
| 1.2℅25 |
29.40 |
0.0483 |
4.79 |
0.20874 |
0.0418 |
4.63 |
0.21609 |
0.0384 |
4.05 |
0.2470 |
| 1.5℅25 |
36.75 |
0.0386 |
3.83 |
0.26093 |
0.0335 |
3.70 |
0.27011 |
0.0307 |
3.24 |
0.3087 |
| 2.0℅25 |
49.00 |
0.0290 |
2.87 |
0.34790 |
0.0251 |
2.78 |
0.36015 |
0.0231 |
2.43 |
0.4116 |
| 2.5℅25 |
61.25 |
0.0232 |
2.30 |
0.43488 |
0.0201 |
2.22 |
0.45019 |
0.0184 |
1.94 |
0.5145 |
| 3.0℅25 |
73.50 |
0.0193 |
1.92 |
0.52185 |
0.0167 |
1.85 |
0.54023 |
0.0154 |
1.62 |
0.6174 |
| 1.0℅30 |
29.40 |
0.0483 |
4.79 |
0.20874 |
0.0418 |
4.63 |
0.21609 |
0.0384 |
4.05 |
0.2470 |
| 1.2℅30 |
35.28 |
0.0402 |
3.99 |
0.25049 |
0.0349 |
3.68 |
0.25931 |
0.0320 |
3.37 |
0.2964 |
| 1.5℅30 |
44.10 |
0.0322 |
3.19 |
0.31311 |
0.0279 |
3.09 |
0.32414 |
0.0256 |
2.70 |
0.3704 |
| 2.0℅30 |
58.80 |
0.0241 |
2.40 |
0.41748 |
0.0209 |
2.31 |
0.43218 |
0.0192 |
2.02 |
0.4939 |
| 2.5℅30 |
73.50 |
0.0193 |
1.92 |
0.52185 |
0.0167 |
1.85 |
0.54023 |
0.0154 |
1.62 |
0.6174 |
| 3.0℅30 |
88.20 |
0.0161 |
1.60 |
0.62622 |
0.139 |
1.54 |
0.64827 |
0.0128 |
1.35 |
0.7409 |
| 3.5℅30 |
102.9 |
0.0138 |
1.37 |
0.73059 |
0.0120 |
1.32 |
0.75632 |
0.0111 |
1.16 |
0.8644 |
| 1.0℅35 |
34.30 |
0.0414 |
4.11 |
0.24353 |
0.0359 |
3.97 |
0.25211 |
0.0329 |
3.47 |
0.2881 |
| 1.2℅35 |
41.16 |
0.0345 |
3.42 |
0.29244 |
0.0299 |
3.31 |
0.30253 |
0.0275 |
2.89 |
0.3457 |
| 1.5℅35 |
51.45 |
0.0276 |
2.74 |
0.36530 |
0.0239 |
2.64 |
0.37816 |
0.0220 |
2.31 |
0.4322 |
| 2.0℅35 |
68.60 |
0.0207 |
2.05 |
0.48706 |
0.0179 |
1.98 |
0.50421 |
0.0165 |
1.74 |
0.5762 |
| 2.5℅35 |
85.75 |
0.0166 |
1.64 |
0.60883 |
0.0143 |
1.59 |
0.63026 |
0.0132 |
1.39 |
0.7203 |
| 3.0℅35 |
102.9 |
0.0138 |
1.37 |
0.73059 |
0.0120 |
1.32 |
0.75632 |
0.0110 |
1.16 |
0.8644 |
| 3.5℅35 |
120.1 |
0.0118 |
1.17 |
0.85271 |
0.0102 |
1.13 |
0.88274 |
0.0095 |
0.99 |
1.0088 |
| 1.0℅40 |
39.20 |
0.0362 |
3.59 |
0.27832 |
0.0314 |
3.47 |
0.28812 |
0.0288 |
3.04 |
0.3293 |
| 1.2℅40 |
47.04 |
0.0302 |
2.99 |
0.33398 |
0.0261 |
2.89 |
0.34574 |
0.0240 |
2.53 |
0.3951 |
| 1.5℅40 |
58.80 |
0.0241 |
2.40 |
0.41748 |
0.0209 |
2.31 |
0.43218 |
0.0192 |
2.02 |
0.4939 |
| 2.0℅40 |
78.40 |
0.0181 |
1.80 |
0.55664 |
0.0157 |
1.74 |
0.57624 |
0.0144 |
1.52 |
0.6586 |
| 2.5℅40 |
98.00 |
0.0145 |
1.44 |
0.69580 |
0.0126 |
1.39 |
0.72030 |
0.0115 |
1.21 |
0.8232 |
| 3.0℅40 |
117.6 |
0.0121 |
1.20 |
0.83496 |
0.0105 |
1.16 |
0.86436 |
0.0096 |
1.01 |
0.9878 |
| 3.5℅40 |
137.2 |
0.0103 |
1.03 |
0.97412 |
0.0090 |
0.99 |
1.00842 |
0.0083 |
0.87 |
1.1525 |
| 4.0℅40 |
156.8 |
0.0091 |
0.898 |
1.11328 |
0.0078 |
0.87 |
1.15248 |
0.0073 |
0.76 |
1.1371 | |
| |
|
