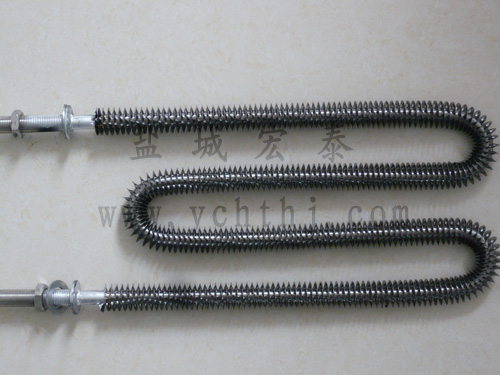

Finned Air Heater
Products with good heat dissipation or cooling effect, high temperature-raising, the product applicable to the hot air heating, air-conditioning,drying, cooling, dehumidify and so on. widely used in medical,chemical industry,light industry, paper making, printing and dyeing,wood drying,large-scale iron and steel plants,motor cooling, and other wide range of applications.
Mechanically-bonded continuous fin assures excellent heat transfer and helps prevent fin vibration at high air velocities.
Several standard formations and mounting bushings available.
Standard fin is high temperature painted steel with steel sheath.
120v, 208v, 240v, 480v available.
Maximum Sheath Temperature
750°F (400°C)
900°F (480°C)
Construction
- Steel, stainless steel or incoloy sheathed elements.
- Element wire situated in proximty to outside surface for maximum heat transfer and minimum internal temperature while presserving good dielectric qualities.
- Pure magnesium oxide compressed to an optimum density for best heat transfer and electrical insulation at elevated temperatures.
- Weld connection.
- Cold pin.
- Insulator.
- Standard Post terminal.
- Painted steel or stainless steel continuous fin
|
