  Electric heating wire for stoven(Fe-Cr-Al) Detailed parameter

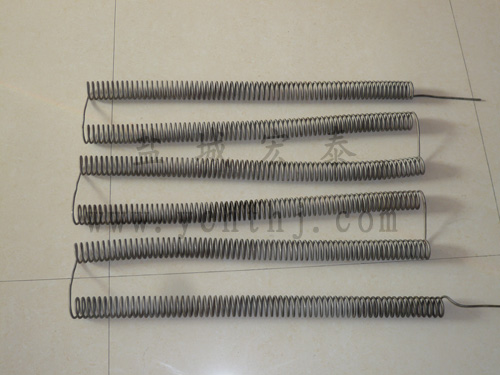

Electric heating wire for stoven(Fe-Cr-Al)



High-temperature electric stove wire is mainly used for industrial electric furnace heating, Drying Stove, Heat Treating Furnace, stove of electronic component, stove of powder metallurgy baking-finish room and so on with the highest temperature of 1450℃.

线 径
(mm)
截面积
(mm2)
每米
表面积
cm2/m
0Cr25AL5
0Cr21AL6Nb
0Cr27AL7Mo2
每米重量
kg/m
每米电阻
/m,20℃
每米重量
kg/m
每米电阻
Ω/m,20℃
每米重量
kg/m
每米电阻
Ω/m,20℃
0.10
0.007854
3.142
0.00005576
180.8
0.00005576
184.6
0.00005576
194.8
0.12
0.01131
3.770
0.00008030
125.6
0.00008030
128.2
0.00008030
135.3
0.15
0.01767
4.712
0.0001255
80.36
0.0001255
82.05
0.0001255
86.58
0.17
0.02270
5.341
0.0001612
62.56
0.0001612
63.88
0.0001612
67.41
0.19
0.02835
5.969
0.0002013
50.08
0.0002013
51.14
0.0002013
53.96
0.21
0.03464
6.597
0.0002459
41.00
0.0002459
41.86
0.0002459
44.17
0.25
0.04909
7.854
0.0003485
28.93
0.0003485
29.54
0.0003485
31.17
0.27
0.05726
8.482
0.0004065
24.80
0.0004065
25.33
0.0004065
26.72
0.29
0.06605
9.111
0.0004690
21.50
0.0004690
21.95
0.0004690
23.16
0.31
0.07548
9.739
0.0005359
18.81
0.0005359
19.21
0.0005359
20.27
0.35
0.09621
11.00
0.0006830
14.76
0.0006830
15.07
0.0006830
15.90
0.40
0.1257
12.57
0.0008922
11.30
0.0008922
11.54
0.0008922
12.18
0.45
0.1590
14.14
0.001129
8.928
0.001129
9.117
0.001129
9.620
0.50
0.1963
15.71
0.001394
7.232
0.001394
7.385
0.001394
7.792
0.60
0.2827
18.85
0.002007
5.022
0.002007
5.128
0.002007
5.411
0.70
0.3848
21.99
0.002732
3.690
0.002732
3.768
0.002732
3.976
0.80
0.5027
25.13
0.003569
2.825
0.003569
2.885
0.003569
3.044
0.90
0.6362
28.28
0.004517
2.232
0.004517
2.279
0.004517
2.405
1.00
0.7854
31.42
0.005576
1.808
0.005576
1.846
0.005576
1.948
1.20
1.131
37.70
0.008030
1.256
0.008030
1.282
0.008030
1.353
1.40
1.539
43.98
0.01093
0.9224
0.01093
0.9419
0.01093
0.9939
1.60
2.011
50.27
0.01428
0.7063
0.01428
0.7212
0.01428
0.7610
1.80
2.545
56.55
0.01807
0.5580
0.01807
0.5698
0.01807
0.6013
2.00
3.142
62.83
0.02231
0.4520
0.02231
0.4615
0.02231
0.4870
2.20
3.801
69.12
0.02699
0.3736
0.02699
0.3814
0.02699
0.4025
2.50
4.909
78.54
0.03485
0.2893
0.03485
0.2954
0.03485
0.3117
2.80
6.158
87.96
0.04372
0.2306
0.04372
0.2355
0.04372
0.2485
3.00
7.069
94.25
0.05019
0.2009
0.05019
0.2051
0.05019
0.2165
3.50
9.621
110.0
0.06831
0.1476
0.06831
0.1507
0.06831
0.1590
4.00
12.57
125.7
0.08922
0.1130
0.08922
0.1154
0.08922
0.1218
4.50
15.90
141.1
0.1129
0.08928
0.1129
0.09117
0.1129
0.09620
5.00
19.63
157.1
0.1394
0.07232
0.1394
0.07385
0.1394
0.07792
5.50
23.76
172.8
0.1687
0.05977
0.1687
0.06103
0.1687
0.06440
6.00
28.27
188.5
0.2007
0.05022
0.2007
0.05128
0.2007
0.05411
6.50
33.18
204.2
0.2356
0.04279
0.2356
0.04370
0.2356
0.04611
7.00
38.48
219.9
0.2732
0.03690
0.2732
0.03768
0.2732
0.03976
