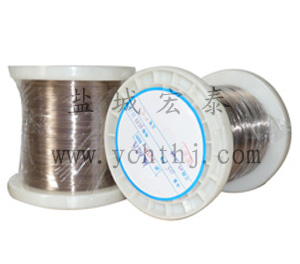

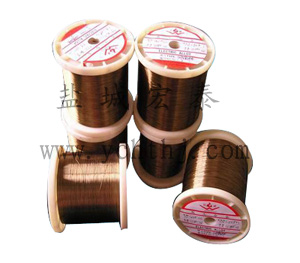

Constantan Wire

Constantan, New Constantan and Manganin are resistance alloys with copper as the basic elements. They have low resistance temperature quotieties, wide range of work temperatures, good mechanical processing performances and corrosion prevention. Being easy in braze welding, they are applicable to manufacturing various resistors, splitters, alternating-current meters as precise resistance components of rheostat resistance and strain resistance.
Main Technical Performances
|
|
Constantan 6J40 |
New Constantan
6J11 |
Manganin
6J12 |
F1
Manganin
6J8 |
F2
Manganin
6J13 |
| Main Chemical Elements % |
Mn |
1~2 |
10.5~12.5 |
11~13 |
8~10 |
11~13 |
| Ni |
39~41 |
- |
2~3 |
- |
2~5 |
| Cu |
ALW |
ALW |
ALW |
ALW |
ALW |
|
|
Al£º2.5~4.5 Fe£º1.0~1.6 |
|
Si£º1~2 |
|
Temperature Range for Components
¡æ |
5~500 |
5~500 |
5~45 |
10~80 |
10~80 |
Density
g/cm3 |
8.88 |
8.00 |
8.44 |
8.70 |
8.40 |
Resistivity
¦Ì¦¸.m,20¡æ
|
0.48
¡À0.03 |
0.49
¡À0.03 |
0.47
¡À0.03 |
0.35
¡À0.05 |
0.44
¡À0.04 |
Extensibility
%£¨£¾¦µ0.5£© |
¡Ý15 |
¡Ý15 |
¡Ý15 |
¡Ý15 |
¡Ý15 |
Resistance
Temperature
Quotiety
¦Á£¬10 -6 /¡æ |
-40~+40 |
-80~+80 |
-3~+20 |
-5~+10 |
0~+40 |
Thermoelectromotive
force to Copper
¦Ìv/¡æ(0~100¡æ) |
45 |
2 |
1 |
2 |
2 | |
|
